Pole LED Screens: Revolutionizing Smart Cities and Outdoor Advertising

The integration of pole LED screen with smart poles represents an innovative leap in urban infrastructure. These screens provide a versatile solution that not only serves as a tool for urban management but also as a powerful advertising medium.

1.  Pole LED Screen?

What is it？

A pole LED screen is a digital display mounted on light poles or smart pole in urban environments. These compact, high-visibility displays make efficient use of limited space and serve a variety of functions, from road guidance and traffic updates to advertising and smart city applications. Their small footprint ensures they do not overcrowd public spaces, while their versatility enables them to be installed in areas such as shopping streets, parks, and tourist attractions.

Unlike traditional static signs, pole LED screens support asynchronous reception and synchronous playback. This flexibility allows these screens to provide dynamic content like video ads, traffic information, and real-time updates.

 Pole led screens play a crucial role in the construction of smart cities, offering a powerful tool for urban information dissemination, digital advertising, and the enhancement of public services.

Features of Pole LED Screen

Street light pole led display come with several important features that make them ideal for both city management and advertising:

（1） Adjustable Brightness: These screens can automatically adjust their brightness based on ambient light, ensuring optimal visibility at all times while conserving energy.

（2） IP65 Waterproof Rating: Built to withstand the outdoor elements, pole LED screen are highly resistant to rain, dust, and other environmental factors.

（3） Heat Dissipation: Equipped with high-efficiency cooling systems, these screens can operate under extreme weather conditions, ensuring long-term performance.

（4） Remote Control: With support for 3G/4G, Wi-Fi, and mobile app control, pole LED display screens can be easily managed from anywhere.

（5） Modular Design: Easy to install and maintain, street light pole led screen feature a modular structure that simplifies repair and upgrades.

（6） Cluster Management: You can control many screens at one time.

（7） Multi-functionality: In addition to displaying ads, pole LED screens can monitor traffic, provide GPS services, and even track environmental data.

2. Why Do You Need a Pole LED Screen?

Whether for city management or advertising, investing in pole LED screens offers numerous benefits:

（1） Construction of Smart Cities

Pole LED display screens contribute significantly to smart city initiatives. They provide real-time traffic updates, environmental data, and public service announcements, improving urban living by making information easily accessible. These screens can also monitor air quality, traffic flow, and energy usage, aligning with the goals of sustainability and efficiency in smart cities.

（2） New Forms of Outdoor Advertising

Although street smart pole led display are not large, multiple screens in one area can play the same message repeatedly, boosting ad visibility.

Unlike traditional static ads, LED pole banner offer front and rear displays for dynamic content like videos and promotions. These screens also support synchronous playback, ensuring all screens show the same content. With a wide viewing angle of over 140 degrees, they’re effective in busy places like roads. Even from a moving vehicle, people can quickly spot the ad, increasing its impact.

（2） The Value of the Pole LED Screen

• Increased Public Engagement: Through interactive content and real-time updates, these screens foster engagement and participation from the public.

• Energy Efficiency: With features like automatic brightness adjustment and energy-saving designs, pole LED screens are environmentally friendly.

• Cost-Effective Advertising: Compared to large digital billboards, pole LED banners are more affordable and offer a higher return on investment due to their strategic placement and low maintenance costs.

3. Ideal Applications for Pole LED Screens

（1） Urban Arterial Roads

On busy roads, pole LED screens can provide traffic updates, guidance, and safety alerts. They can also integrate with a smart lighting system, environmental monitoring systems, and video surveillance for a comprehensive traffic management solution.

（2） Scenic Areas and Tourist Spots

In high-traffic tourist areas, LED pole screen can enhance the visitor experience by providing location-based information, maps, and advertisements. They can also be paired with outdoor Wi-Fi, charging stations, and security systems for a fully integrated smart solution.

（3） Schools

In educational environments, street light pole led display can be used for campus notifications, event announcements, and educational content, offering a more dynamic communication tool compared to traditional noticeboards.

（4） Smart Communities

In residential areas, pole LED screens can offer a variety of services, including local news updates, community events, and emergency notifications.

（5） Smart Traffic

Pole LED screens help improve traffic management by providing real-time traffic guidance, parking information, and monitoring traffic flow. They also help track traffic violations and reduce congestion, making roads safer and more efficient.

（6） Smart Commercial Areas

In commercial districts, light pole LED screens can display promotions, sales, and important local information, attracting shoppers and improving the area’s digital landscape.

4. Technical Features of Pole LED Screens

（1） Automatic Brightness Adjustment – Smart Light Sensor

Tecnon Pole Screen uses a large chip material, which makes the  Pole Screen more adaptable to the environment and has a large usable space for brightness. It includes a photoresistor that adjusts the brightness based on ambient light intensity. This feature reduces screen heat, improves stability, and saves energy. It prevents light pollution caused by excessive brightness and ensures optimal display quality without being too dim.

Additionally, the system has an environmental monitoring module that collects and reports environmental data, allowing real-time awareness of local conditions through the display.

（2） Remote Control

• Centralized control: Manage multiple screens from a single location.

• Real-time updates: you can publish real-time information remotely, eliminating the need for on-site presence.

• Ease of use: 3G / 4G / free Wi-Fi wireless network control / mobile APP control.

（3） Cluster Management System

• Multi-screen control: Manage numerous screens simultaneously.

• Supports various formats: JPG, AVI, and other file types are compatible.

• Playback logs: Track the frequency and timing of ads, ensuring accountability for advertisers.

• Documentation: User and operation manuals are provided for ease of use.

（4） Real-time Synchronous Playback

• Unified display: All screens can display the same content simultaneously.

• Impactful advertising: Large ads and event content can be synchronized to enhance visual impact.

• Targeted delivery: Content can be scheduled and targeted to specific geographic locations or time slots.

（5） Safety Protection System

The product is equipped with short-circuit protection and lightning protection, ensuring safe operation even in challenging conditions.

（6） Temperature Control System: Intelligent Air Cooling

The system uses a temperature-controlled fan that activates only when the cabinet temperature exceeds 30°C, extending fan life and reducing energy consumption.

• Efficient airflow: In a 4-fan setup, not all fans need to run at once, ensuring optimal cooling while prolonging the fan’s lifespan.

• Longer lifespan: Unlike traditional fans that run continuously, the temperature-controlled fan only operates when necessary, significantly extending its life.

（7） Remote Power Control

Users can remotely control the power switch of the light pole led display screen, making energy management more efficient.

（8） Heat Dissipation

The number of temperature-controlled fans is adjusted based on the screen’s specific needs. Components like the sending card, receiving card, and power supply are positioned to promote effective thermal convection, ensuring optimal performance and longevity.

（9） Control Board and Software

The LED pole screen uses a photoresistor to detect ambient light and generates an analog signal. To effectively adjust the brightness, this analog signal must be converted into a digital signal. This requires the control board and software design to have more than 100 levels of fine adjustment control.

This high precision brings technical challenges, but after extensive testing and optimization, we have achieved seamless brightness transitions. This ensures that the screen can perform optimally under various lighting conditions and provide consistent display quality regardless of changes in ambient light.

5. Installation Methods for Pole LED Screens

LED pole banner supports multi-installation solutions, such as hanging, side hanging, and mounting etc. Front service solution is also available for street light pole led display. It can be opened from front, side and back side for easy maintenance.

For easier maintenance, we would recommend the side installation. This allows you to access and repair the unit by opening the doors from the back.

6. Is a Pole LED Screen Expensive?

The price of a pole LED screen varies depending on several factors, such as:

Customization: Tailored designs, including unique cabinet shapes or materials, can increase costs.

Waterproof and Dustproof Requirements: Higher levels of protection, such as IP65 or IP67 ratings, may increase the price.

Control System: More advanced control systems, including wireless remote access and management, can also raise the cost.

Energy-saving features: Systems designed for energy efficiency or lower maintenance costs may have a higher upfront cost but offer long-term savings.

However, the long-term benefits, such as energy savings, reduced maintenance, and enhanced advertising opportunities, make street pole led display screens a worthwhile investment.

7. Why Choose Us

（1） Custom Modules

• Our modules are custom-designed with a brightness of 7000 nits, ensuring clear visibility even in direct sunlight.

• They operate at a lower current when the brightness is reduced, saving energy, reducing heat, and prolonging service life.

• Waterproof with a conformal coating and a rubber ring on the back for added protection. No need for extra glass.

• Masks are in the front to protect the LED SMD. It’s installed outside with no glass for protection. The masks will protect LED SMD from being damaged by branches or sands in the strong wind.

（2） Waterproof Design

• The frame of LED Pole Screen is waterproof design, with a rain protection plate reducing 90% of water leakage from the top.

• Rubber rings around the cabinet doors prevent moisture from entering.

• The fans and ventilation holes are positioned downward to keep rainwater out.

（3） Optimal Component Layout

• We place the power supplies which is sensitive to the temperature on the bottom, reducing temperature exposure.

• Cables are arranged in a straight line to ensure free airflow. If cables are are in a mess, airflow can become blocked, causing dust to accumulate on critical components like the power supply or control card. This buildup can lead to performance issues or even damage the screen.

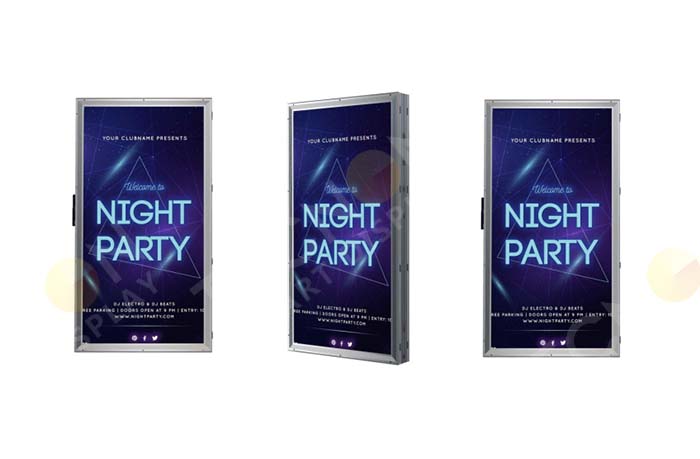

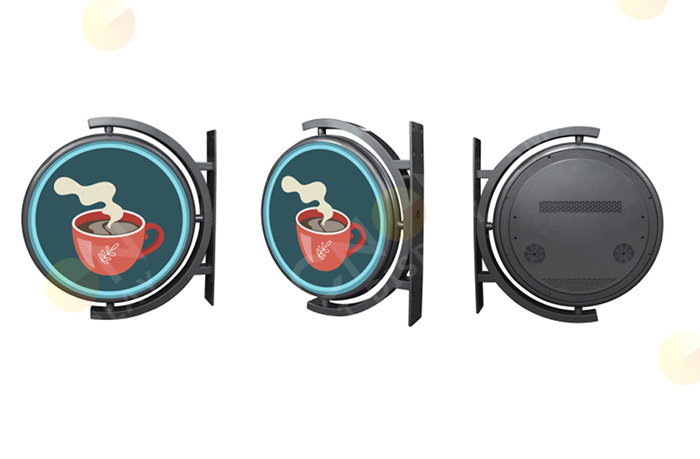

（4） Elegant Design

• The design is sleek with smooth finishes and durable paint in in various colors.

• Precision Construction: The modules are built with high precision, ensuring no gaps for a seamless visual effect.

• Anti-theft locks : only authorized personnel can open the cabinet for maintenance.

（5） Heat Dissipation

• Our products can withstand temperature up to 80°C, ensuring reliable operation even in high heat.

• We use industrial-grade components, including capacitors and chips, to ensure long-lasting durability.

（6） High and low temperature resistance

• Not only can our pole led screen withstand high temperatures of 80°C, but it can also operate normally at cold area.

• It’s OK for them to work when the temperature is -20°C. We use silicone power cable and special power supply. That’s no problem.

（7） EMC and FCC Compliance

• We comply with EMC and FCC regulations.

• Our modules feature 4 layers of PCB are designed with earthing , EMC-certified power supplies, and shielded sending cards, meeting all necessary regulatory standards.

Showcase

Conclusion

our LED pole screen offer exceptional quality, durability, and innovative features. With elegant design, precise craftsmanship, and top-tier functionality, they’re the perfect choice for modern advertising solutions. For more details or to discuss your specific requirements, don’t hesitate to contact us. We’re ready to assist you with all your LED display needs!
